3A, 36V, 500kHz Current Mode Asynchronous Step-Down Converter

EVB_RT2808AGSP

ACTIVE

The RT2808A is a current mode asynchronous step-down converter that achieves excellent load and line regulation.Over a wide input voltage range from 5.5V to 36V and supports output current up to 3A. The Current mode operation provides fast transient response and eases loop stabilization. An adjustable soft-start reduces the stress on the input source at start up. In shut down mode, the regulator draws only 25μA of supply current. The RT2808A requires a minimum number of readily available external components, providing a compact solution. The RT2808A provides protection functions inducing input under voltage lockout, cycle-by-cycle current limit, short circuit protection and thermal shutdown protection.The RT2808A is available in the SOP-8 (Exposed Pad) package.

Purpose

The RT2808A is a current mode asynchronous step-down converter that achieves excellent load and line regulation. This document explains the function and use of the RT2808A evaluation board (EVB) and provides information to enable operation and modification of the evaluation board and circuit to suit individual requirements.

Introduction

General Product Description

Product Features

3A Output Current
Wide Operating Input Range 5.5V to 36V
Adjustable Output Voltage from 1.222V to 26V
High Efficiency up to 90%
Internal Compensation Minimizes External Parts Count
Internal Soft-Start
110mΩ Internal Power MOSFET Switch
25μA Shutdown Mode
Fixed 500kHz Frequency
Thermal Shutdown
Cycle-by-Cycle Current Limit
Available In an SOP-8 (Exposed Pad) Package
RoHS Compliant and Halogen Free

Application

Distributive Power Systems
Battery Charger
DSL Modems
Pre-regulator for Linear Regulators

Key Performance Summary Table

Key Features	Evaluation Board Number : PCB011_V1
Default VIN Input Voltage	12V
Max Output Current	3A
Default Output Voltage	2.5V
Default Marking & Package Type	RT2808AGSP, SOP-8 (Exposed Pad)

Bench Test Setup Conditions

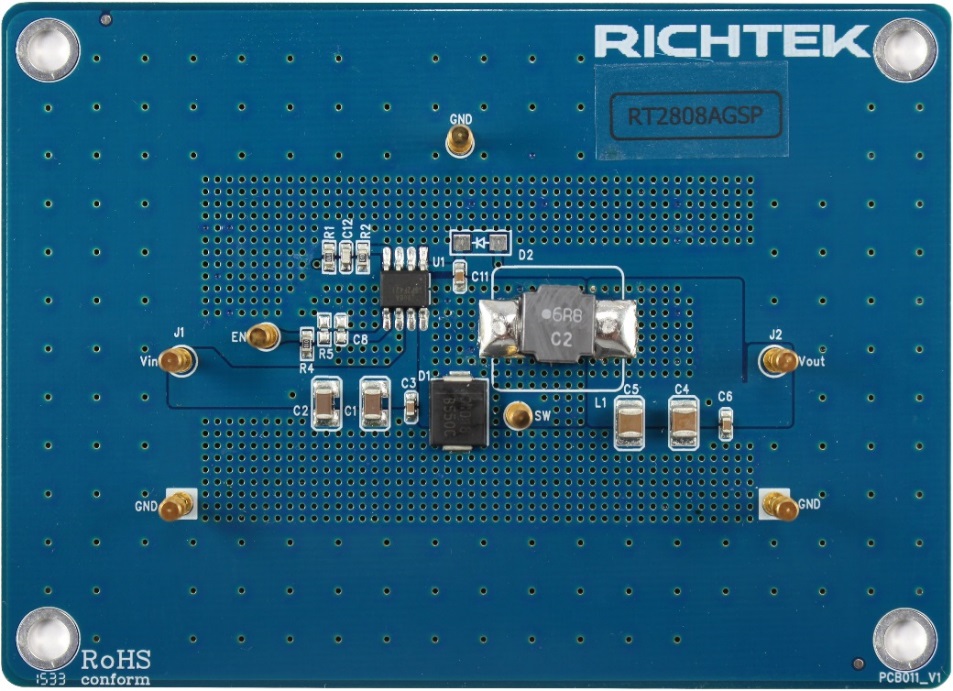

Headers Description and Placement

Please carefully inspect the EVB IC and external components, comparing them to the following Bill of Materials, to ensure that all components are installed and undamaged. If any components are missing or damaged during transportation, please contact the distributor or send e-mail to evb_service@richtek.com

Test Points

The EVB is provided with the test points and pin names listed in the table below.

Test point/Pin name	Signal	Comment (expected waveforms or voltage levels on test points)
Vin	Input voltage	Input voltage range = 5.5V to 36V
Vout	Output voltage	Output voltage = 2.4V
SW	Switch Node
EN	Chip Enable Operation	The EN pin is externally pulled to High by adding a 100kΩ resistor (R4) from the VIN pin in this EVB setting. For another enable operation, the converter is turned on when the EN pin is higher than 1.4V and turned off when the EN pin is lower than 0.4V.
GND	Ground	Ground. The exposed pad must be soldered to a large PCB and connected to GND for maximum power dissipation.

Power-up & Measurement Procedure

1. Connect input power (5.5V < V_IN < 36V) and input ground to Vin and GND pins respectively.

2. Connect positive end and negative end of load to Vout and GND of output pins respectively.

3. The output voltage of (V_OUT) can be set by R1 and R2.

V_OUT = V_REF * (1 + R1 / R2)

where V_REF = 1.222V (typ.)

Specification

Parameter	Symbol	Min	Typ.	Max	Units
Input Voltage Range	V_IN	5.5		36	V
Output Voltage	V_OUT		2.4		V
Oscillator Frequency	f_OSC	400	500	600	kHz
Output Current	I_OUT			3	A
Current Limit	I_LIM	4	5.25	6.5	A

Schematic, Bill of Materials & Board Layout

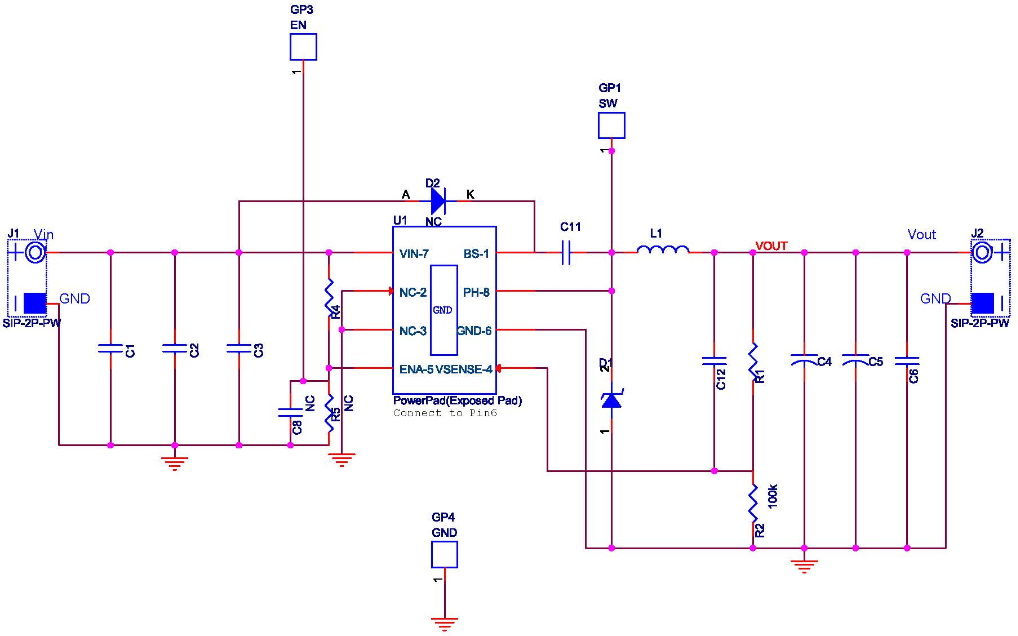

EVB Schematic Diagram

Bill of Materials

Reference	Qty	P/N	Description	Package	Manufacture
U1	1	RT2808AGSP	Step-down converter	SOP-8 (Exposed Pad)	RICHTEK
C1, C2	2	GRM32ER71H475K	4.7μF/50V/X7R	C-1210	MURATA
C3, C6, C11	3	C1608X7R1H104K080AA	0.1μF/±10%/50V/X7R	C-0603	TDK
C4, C5	2	GRM32ER61C226KE20	22μF/±10%/16V/X5R	C-1210	MURATA
C12	1		82pF	C-0603
L1	1	NR8040T6R8N	6.8µH		TAIYO YUDEN
D1	1	B550C	50V/5A		DIODES
R1, R2, R4	3		100k	R-0402
C8, R5	2		NC

PCB Layout

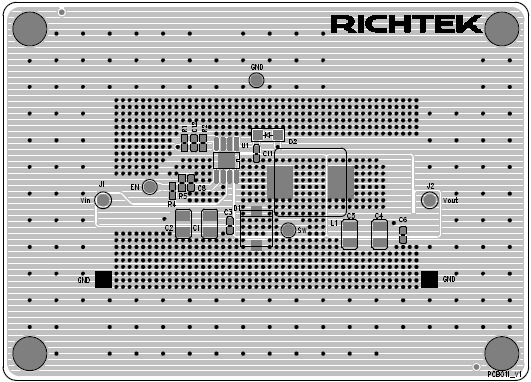

Top View (1^st layer)

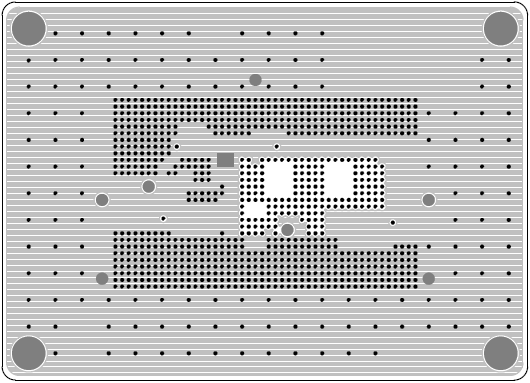

PCB Layout—Inner Side (2^nd Layer)

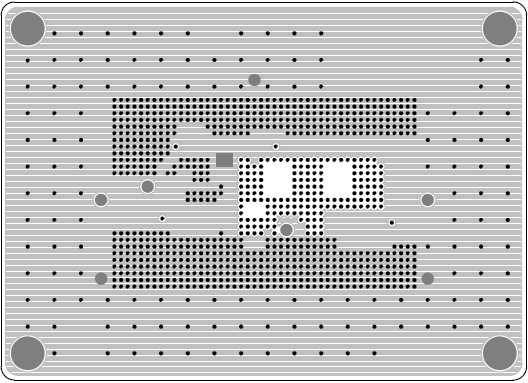

PCB Layout—Inner Side (3^rd Layer)

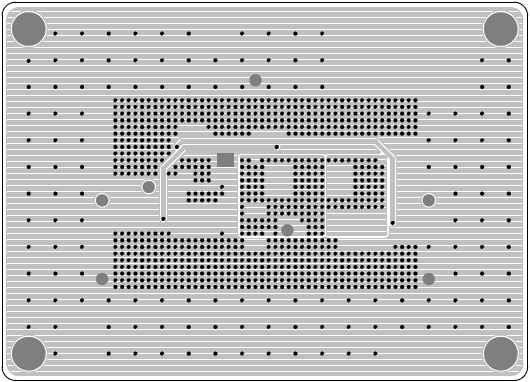

Bottom View (4^th Layer)

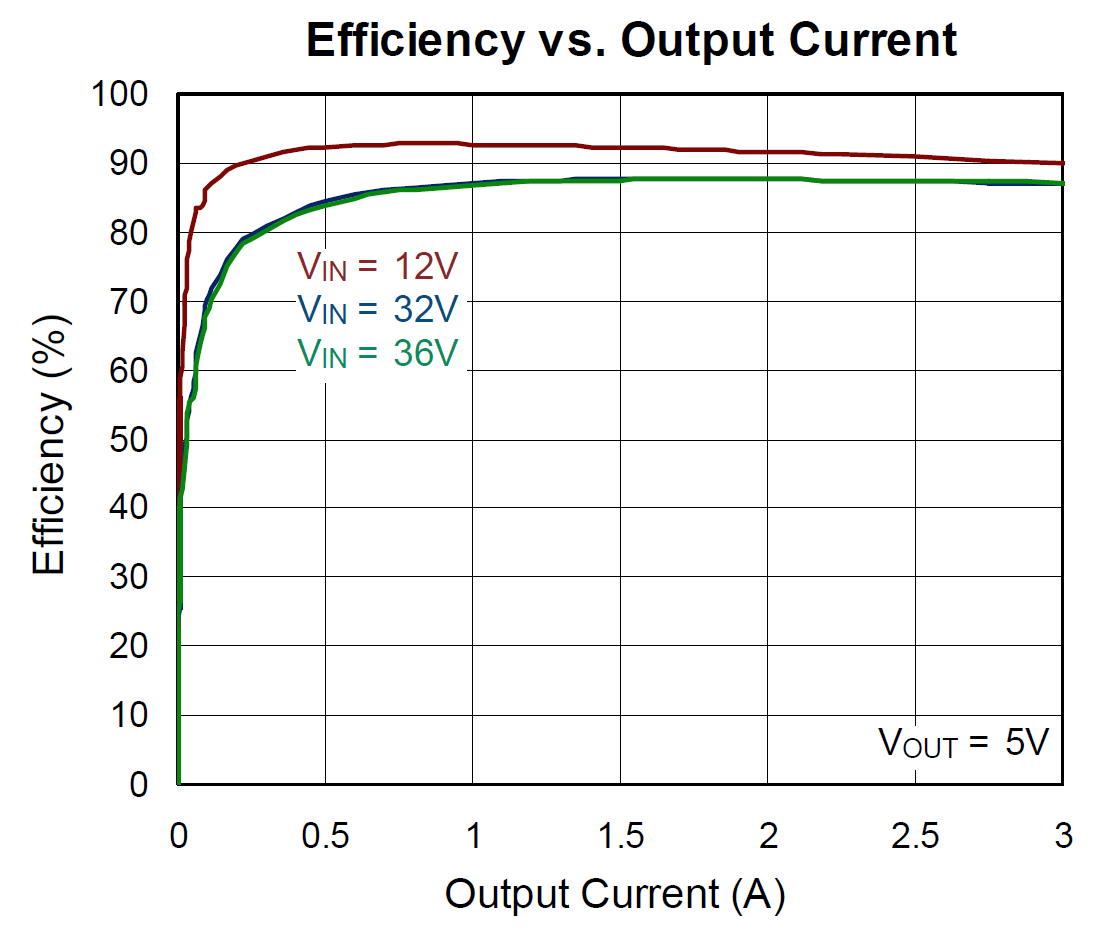

Step-Down Converter Efficiency Test
